Product description

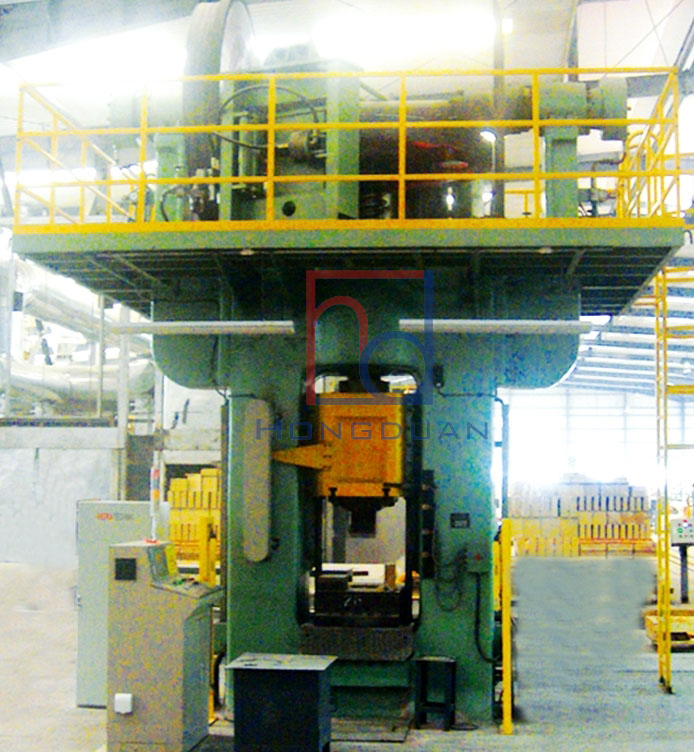

J93 Series friction fire brick press is designed to meet the requirement of refractory materials pressing. Adopting full-stroke braking, friction overloading assurance as well as other advanced technologies. this machine owns advantages of simple structure, big striking force, high number of strokes, reliable operation and convenient usage and maintenance.
| Main parameters | unit | J93-300 | J93-400 | J93-630B | J93-630D | J93-1000C | J93-1600C | J93-2500C | |
| Nominal force | KN | 3000 | 4000 | 6300 | 6300 | 10000 | 16000 | 25000 | |
| Maximum force | KN | 6000 | 8000 | 12500 | 12500 | 20000 | 32000 | 50000 | |
| Ram stroke | mm | 400 | 500 | 600 | 600 | 700 | 700 | 800 | |
| Times of stroke | min-1 | 15 | 20 | 13 | 13 | 10 | 10 | 9 | |
| Die height | mm | 300 | 400 | 470 | 470 | 500 | 550 | 700 | |
| Height of bolster | mm | | 120 | 180 | 180 | 200 | 200 | 280 | |
| Lifting method | KN | (rigid) | (rigid) | (rigid) | (rigid) | (rigid) | (rigid) | (rigid) | |
| Lifting stroke | mm | 300 | 350 | 350 | 350 | 500 | 500 | 400 | |
| Dimention of | Left/right | mm | 520 | 635 | 760 | 760 | 1190 | 1000 | 1900 |
| ram | Front/back | mm | 485 | 635 | 700 | 700 | 800 | 900 | 1060 |
| Dimention of | Left/right | mm | 650 | 820 | 920 | 920 | 1200 | 1250 | 2000 |
| working table | Front/back | mm | 570 | 730 | 820 | 820 | 1000 | 1100 | 1200 |
| Overall | Length | mm | 1603 | 2100 | 4387 | 4387 | 5355 | 4500 | 5360 |
| dimention | Width | mm | 2581 | 2812 | 4694 | 4694 | 4900 | 5742 | 7000 |
| | Height | mm | 4345 | 5155 | 6060 | 6060 | 7290 | 8090 | 9410 |
| Main motor power | KW | 22 | 37 | 55 | 55 | 90 | 132 | 2X110 | |
| Weight | Kg | 13920 | 23530 | 43500 | 43500 | 85000 | 112000 | 222000 | |
