The home biggest 12,500 ton friction press are published in the Qingdao knowledgeable forging and stamping machinery Limited company

Views:0     Author:Site Editor     Publish Time: 2016-03-11      Origin:Site

 Along with the market to the large-scale forging's demand, the domestic forging and stamping profession also grows day by day to the large-scale drop forging device's demand. At present, the domestic ten thousand ton above drop forging device nearly is the imported product, the price is quite expensive.

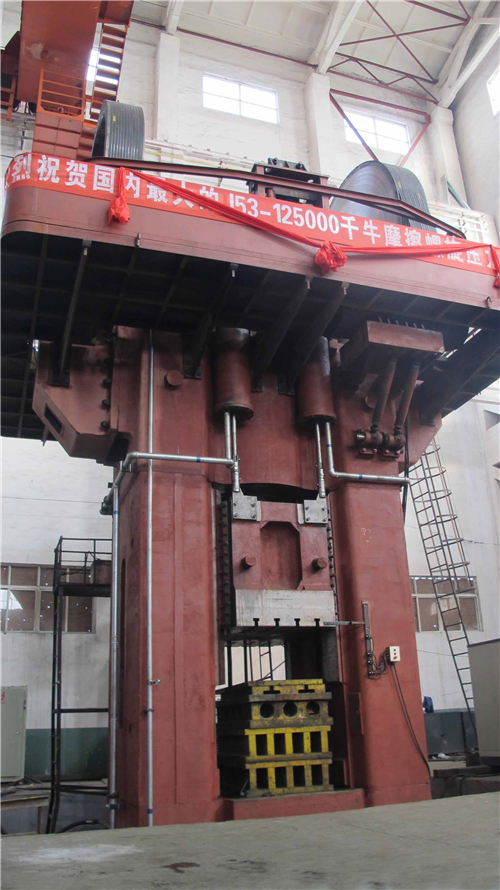

  The Qingdao knowledgeable forging and stamping machinery Limited company in ten thousand ton friction press put in market many, and uses in many year empirical bases, passes through the correlation technique personnel's endeavor, has developed the J53-125000KN friction press, and applied for many patents. in January, 2014 and client signing, lasted one year manufacture, at present the product already through the client approval, and passed the national casting forging and stamping mechanical quality surveillance test center examination, its result has met the standing operating procedure requirements completely. This product's being published, will certainly to make the contribution for the domestic large-scale forging enterprise's development.

  This product's technical parameter is as follows:

              J53-12500 press major technique parameter

 Nominal strength                        125000          kN

 Energy                           2000           kJ

 Biggest load (core load)          180000          kN



Slide stroke                       900            mm

 Traveling schedule number of times                        7             min-1

 Slightly seals high                       1450           mm

 Backing strip thickness                       350            mm

 Smallest pattern making altitude                   1100           mm

 Guide rail spacing                       1560           mm

 Slide bottom surface (around * about)       2600×1550       mm

 Work floor (around * about)       2800×1800       mm

 Top material mode                    Hydraulic pressure top material



Top material traveling schedule                      300             mm

 Biggest top material strength                    1000            kN

 External dimensions (around * about * high) 6800×9300×14060 mm (not including top material)

 Above ground altitude                  11260           mm

 Main electrical machinery power                    2×355          kW

 Lumpy mass                      ~720000          Kg
 20150121091248_84781_ vice-this20150121092727_43794_ vice-this
