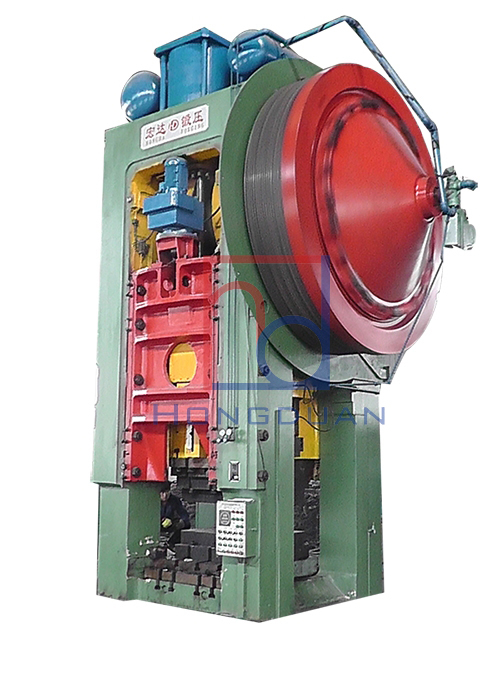

MP Series Hot Forging Press

By introducing of the world's advanced technology, our company developed MP Series Hot Forging Press. MP Series Hot Forging Press is widely used in areas of : automobile, tractors, internal combustion machinery,ship, aviation, >>More

Quantity:

  • MP series

Product description

By introducing of the world's advanced technology, our company developed MP Series Hot Forging Press. MP Series Hot Forging Press is widely used in areas of : automobile, tractors, internal combustion machinery,ship, aviation, mineral machinery, petroleum machinery, hardwares and tools.also used in the forging and precise trimming of bulk ferrous and non-ferrous metals.
This series machine has following advantages:

1.high precision
2.high utilization of material
3.high efficiency
4.automatic operation
5.low noise and light vibration


main technical
parameters
Unit MP-
630
MP-
1000
MP-
1600
MP-
2000
MP-
2500
MP-
3150
MP-
4000
MP-
5000
MP-
6300
Nominal force
MN 6.30 10 16 20 25 31.5 40 50 63
Ram stroke
mm 220 250 280 300 320 340 360 400 450
Times of stroke  min-1 110 100 90 85 80 60 55 45 50
Maximum shut
height
mm 630 700 875 950 1000 1050 1110 1468 1615
Height adjustment  mm 11 14 18 20 22.5 25 28 32 35
Dimention
of
Left/right mm 690 850 1050 1210 1300 1400 1500 1570 1840
working
table
Front/back mm 920 1120 1400 1530 1700 1860 2050 2250 2350
Dimention of Left/right mm 670 820 1030 1180 1260 1360 1460 1550 1820
ram Front/back mm 965 936 1140 1260 1380 1540 1710 1875 1925
Upper ejector Type
mechanicall

force  KN 32 50 80 100 125 160 200 250 300

Stroke  mm 24 30 37 40 44 48 52 60 60
Lower ejector Type
mechanical 液压 hydraulic 液压

force  KN 95 150 240 300 375 475 600 650 700

Stroke  mm 24 30 37 40 44 48 50/200 0~150 0~150

Power KW 55 75 95 132 160 190 250 320 355
Main motor Rotate speed rpm 1000 1000 1000 1000 1000 1500 1500 1500 1000

Voltage  V 380 380 380 380 380 380 380 380 380
Overall  Length  mm 3425 3500 3820 4469 4500 4100 4550 5000 5650
dimention Width  mm 2825 4800 5080 5130 5250 5307 6350 6850 7525

Height mm 4715 6000 6571 7326 7850 8415 10000 10600 10800
Height above the ground
mm 3800 5300 6120 6471 6850 7340 7800 8400 8500
